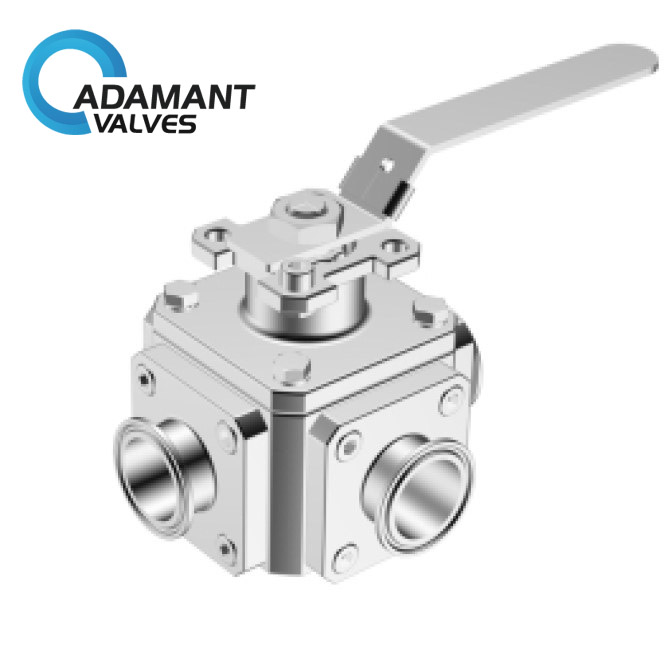

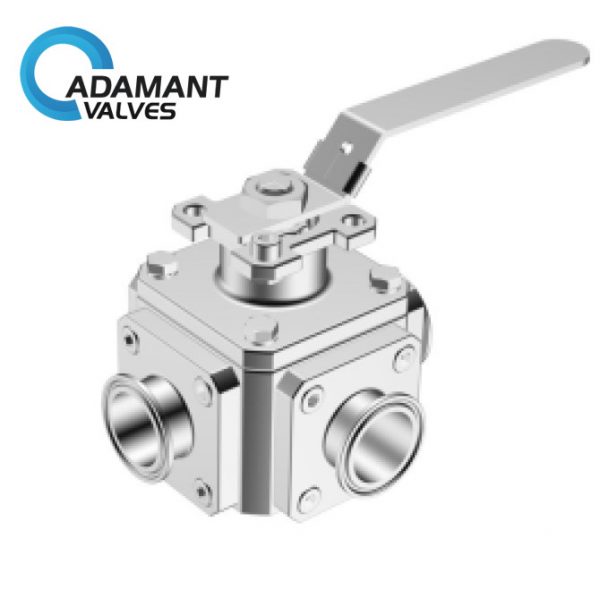

AV-2TW Sanitary Titanium 3-Way Ball Valve

Availability : In stock
Diameter Nominal DN15 to DN100
Valve body material Hastelloy C276/C22 Monel 400,

254SMO N08904 Titanium TA1/TA2

Max. working pressure 10 Bar (145psi)
Temperature range -4 ~ 302℉ (-20 ~ 150℃)
Air supply pressure PN16, PN25, PN40
SKU: AV-2TW Category:

Sanitary Titanium 3-Way Ball Valve Description

Sanitary Titanium 3-Way Ball Valve is widely used in the food industry such as sanitary wine, dairy products, and beverages, as well as in the pharmaceutical field under aseptic conditions. L port and T port can be replaced at will and do not change the overall length of the valve. It is made of Titanium TA1/TA2, and is the upgrade model of AV-2MFBC3 Sanitary 3-Way Manual Full Bore Ball Valve With Tri-Clamp Ends.



Sanitary Titanium 3-Way Ball Valve Specifications

Diameter Nominal DN15 to DN100
Valve body material Hastelloy C276/C22 Monel 400,

254SMO N08904 Titanium TA1/TA2

Max. working pressure 10 Bar (145psi)
Temperature range -4 ~ 302℉ (-20 ~ 150℃)
End connections Tri-clamp, others available upon request.
Surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.
3-way body T type / L Type
Air supply pressure PN16, PN25, PN40



Sanitary Titanium 3-Way Ball Valve Applications

Sanitary Titanium 3-Way Ball Valve is widely used in the food industry such as sanitary wine, dairy products, and beverages, as well as in the pharmaceutical field under aseptic conditions.
