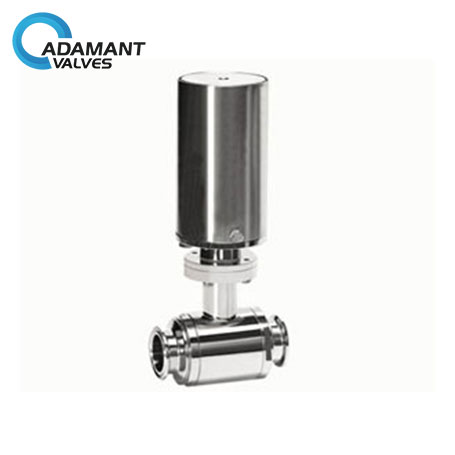

AV-2PFC Sanitary Ball Valves with Tri-clamp Ends, Pneumatic Type

Availability : In stock

Specification

Type

Ball Valve

Reference No.

AV-2PFC

Sizes

1/2″ to  4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve material

AISI 304 or AISI 316L

Valve seat

Teflon (PTFE)

Max. working pressure

145psi (10bar)

Temperature range

-4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option

End connections

tri-clamp, others available upon request

Actuator

304 material, vertical type, NC/NO/AA type for choose from

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default

Air supply pressure

70-116psi (5-8bar)

SKU: AV-2PFC Categories: ,

Reference Price: $210-700

Sanitary Pneumatic Ball Valves Description

Full Port Tri-clamp ball valves are made from stainless steel SS304 or SS316, and offer full port, unobstructed flow. A ball valve is often placed on the end of CIP piping. Our ball valves are available in standard or 3-piece encapsulated. Our standard ball valves can handle 250 PSI, while the encapsulated models are rated up to 1000 WOG. All valve handles swing out from the center, and encapsulated models allow locking of the handle.

Sanitary Pneumatic Ball Valves Application

AV-2PFC series is a pneumatic type sanitary ball valve with tri-clamp / tri-clamp ends, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design with zero restriction makes it an optimum choice for viscous and particulate liquids, AV-2PFC ball valve operates automatically by actuators.

Sanitary Pneumatic Ball Valves Specification

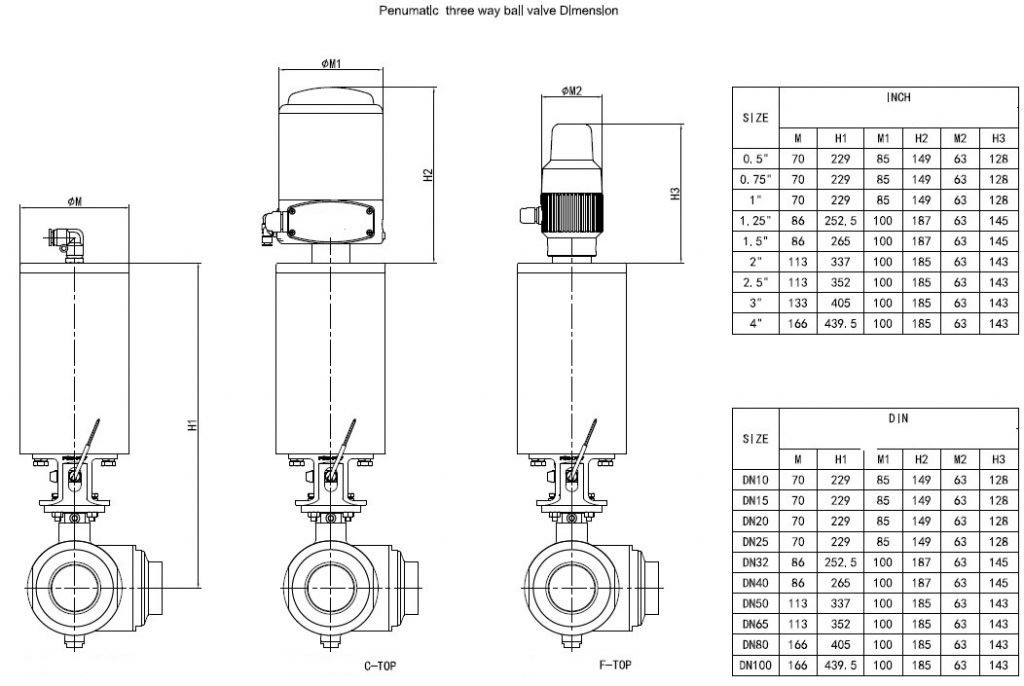

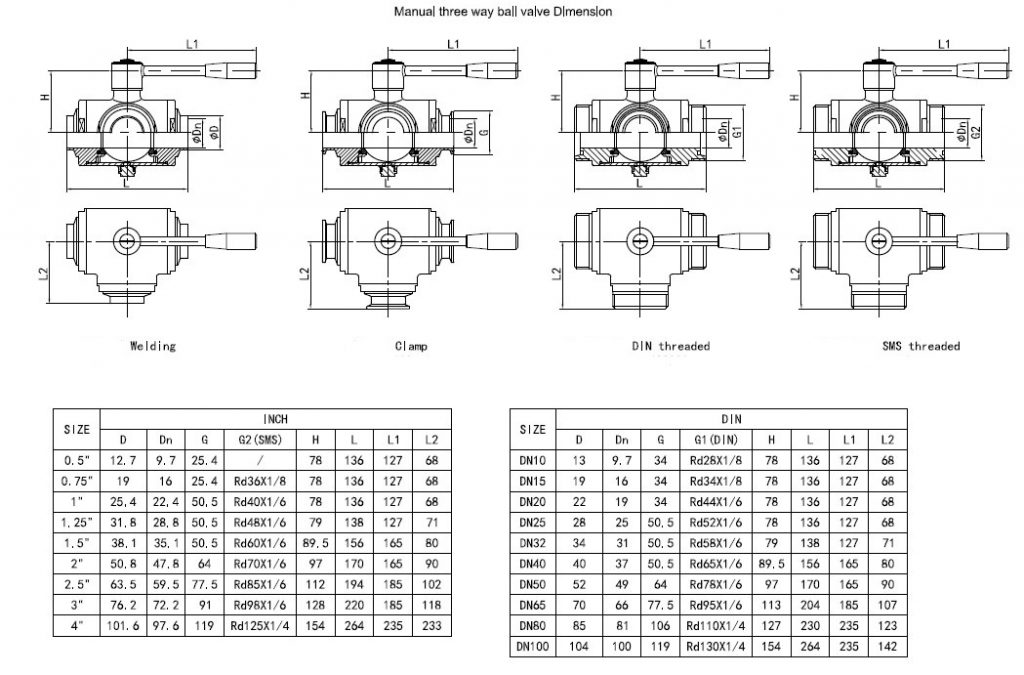

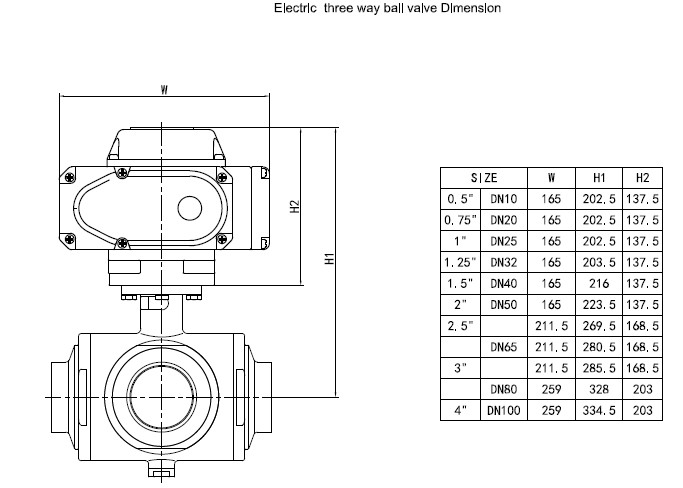

3 way ball valve

Type

Ball Valve

Reference No.

AV-2PFC

Sizes

1/2″ to  4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve material

AISI 304 or AISI 316L

Valve seat

Teflon (PTFE)

Max. working pressure

145psi (10bar)

Temperature range

-4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option

End connections

tri-clamp, others available upon request

Actuator

304 material, vertical type, NC/NO/AA type for choose from

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default

Air supply pressure

70-116psi (5-8bar)

Sanitary Pneumatic Ball Valves Options

End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line, or others upon request.

Valve body can be three-way: T type or L type ball core for choose from

Valve body can be with or without purge ports for SIP / CIP.

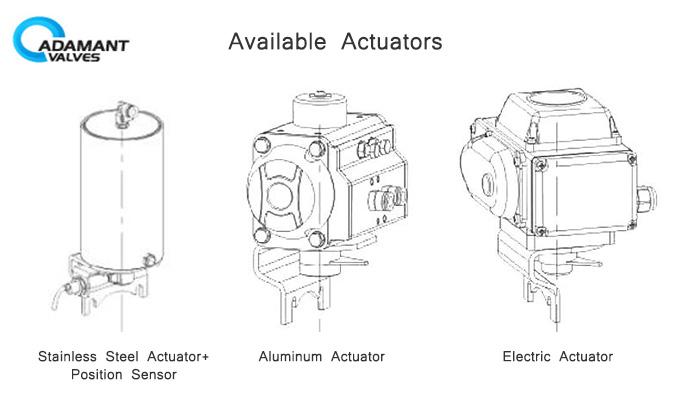

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

actuators

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)



Sanitary Pneumatic Ball Valves Design Features

Maintenance free operation

Compact and portable

Small operating torque

Valve seals and gaskets comply with FDA 177.2600

Manual handle, pneumatic actuator, electric actuator are interchangeable.



Sanitary Pneumatic Ball Valves Technical Parameters

Steel material Product wetted steel parts AISI 304 or 316L

(1.4306 / 1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard Teflon (PTFE) All seal materials comply with FDA 21CFR117.2600
Options NA
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections can be butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.
Actuator Normally Closed (NC) – Air to open and spring to close;

Normally Open (NO) – Air to close and spring to open;

Air to Air (AA) – Air to open, air to close.
